Kroeplin, Germany

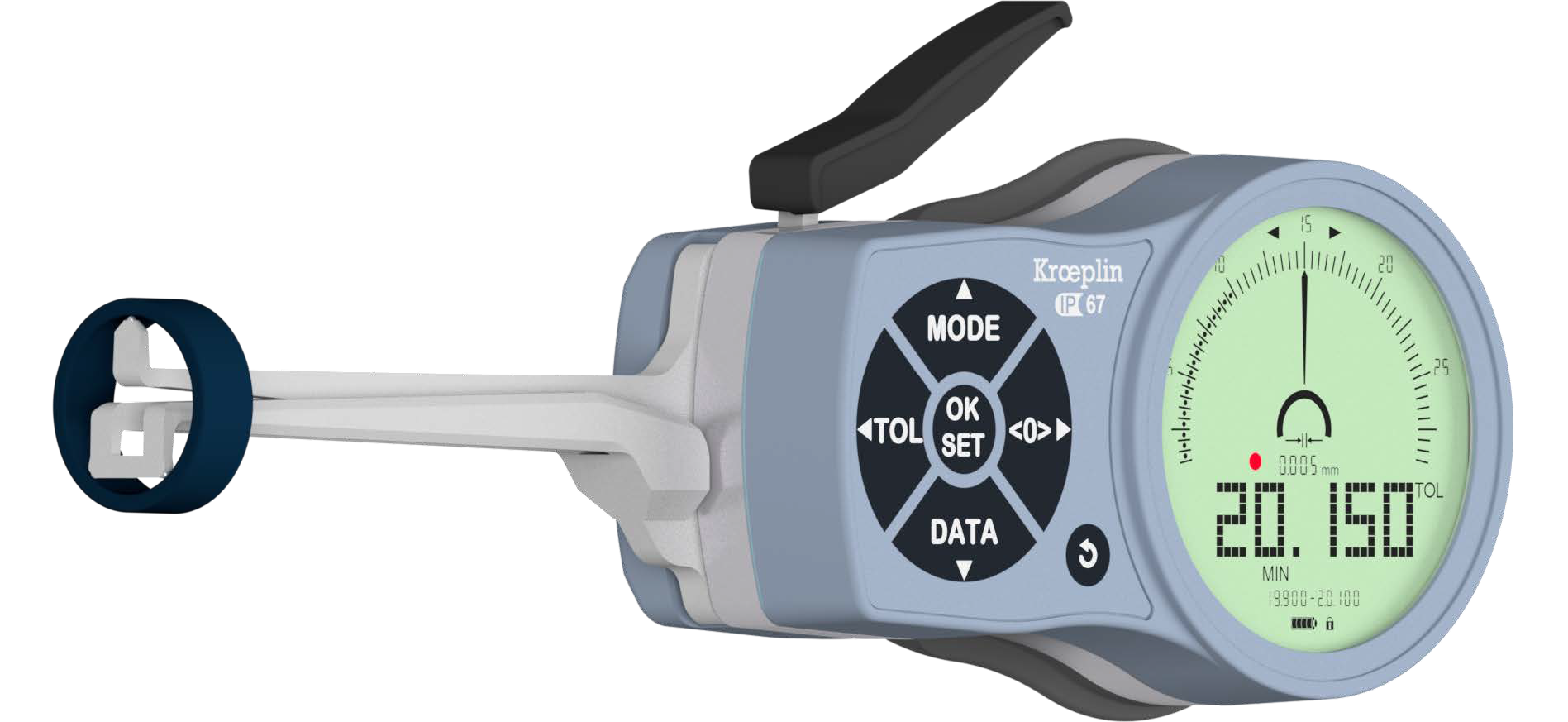

Internal Measurement 3-Point Internal Measuring Instrument
Precision internal measuring instrument with 3-point contact, designed for accurate bore and internal dimension measurement. The instrument features IP67 protection, fine numerical interval indication, and multiple measuring contact configurations for reliable measurement in different groove sizes and depths.
Available Models:
• L107P3 - Measuring range: 7-14 mm
• L210P3 - Measuring range: 10-20 mm
• L215P3 - Measuring range: 15-30 mm
• L225P3 - Measuring range: 25-45 mm
• L240P3 - Measuring range: 40-60 mm
• L255P3 - Measuring range: 55-75 mm
• L270P3 - Measuring range: 70-90 mm
• L285P3 - Measuring range: 85-105 mm
Specifications
- 3-point contact measuring system for stable and accurate internal measurement
- Application range: 7 to 105 mm across multiple models
- IP67 protection class for reliable use in demanding environments
- Fine numerical interval indication from 0.002 mm to 0.005 mm
- Repeatability up to 0.004 mm / 0.01 mm, depending on model

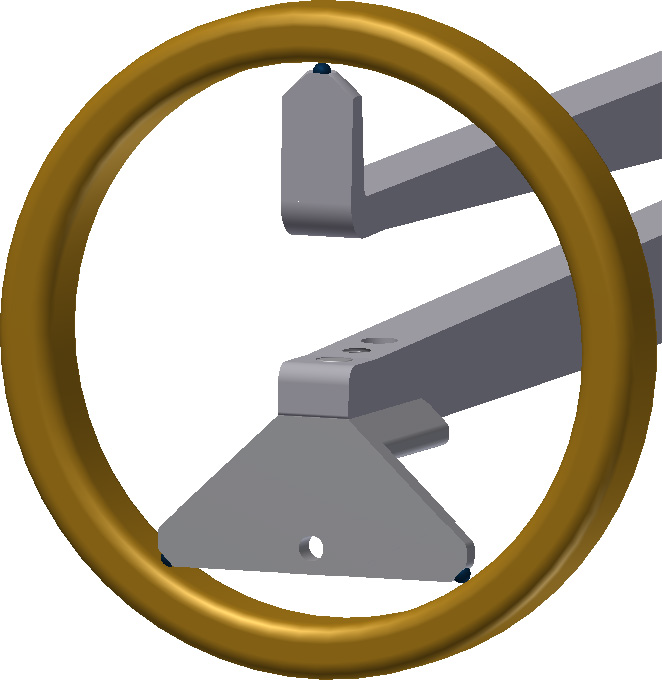

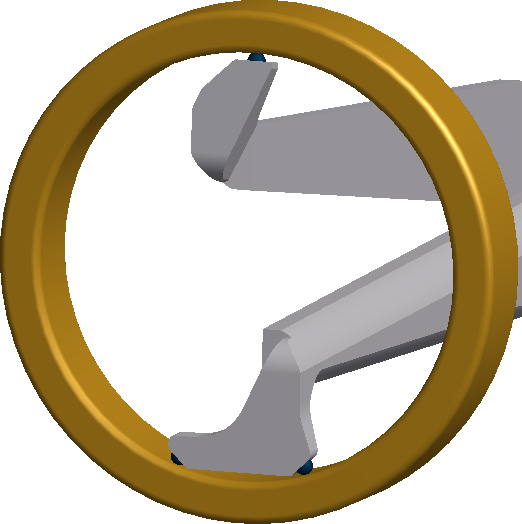

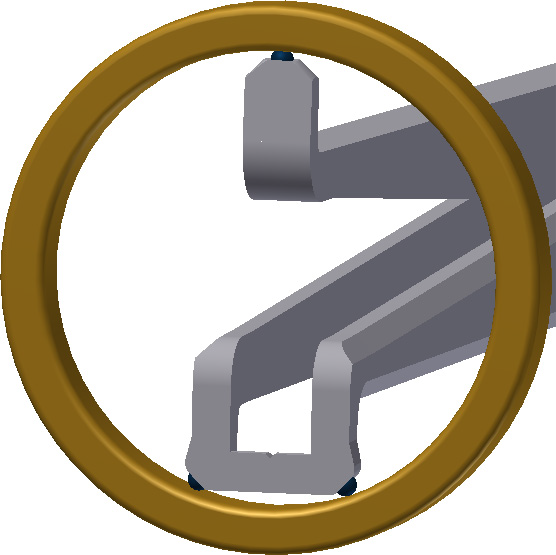

- Available with Ball Ø0.6 mm and Ball Ø1.0 mm measuring contacts
