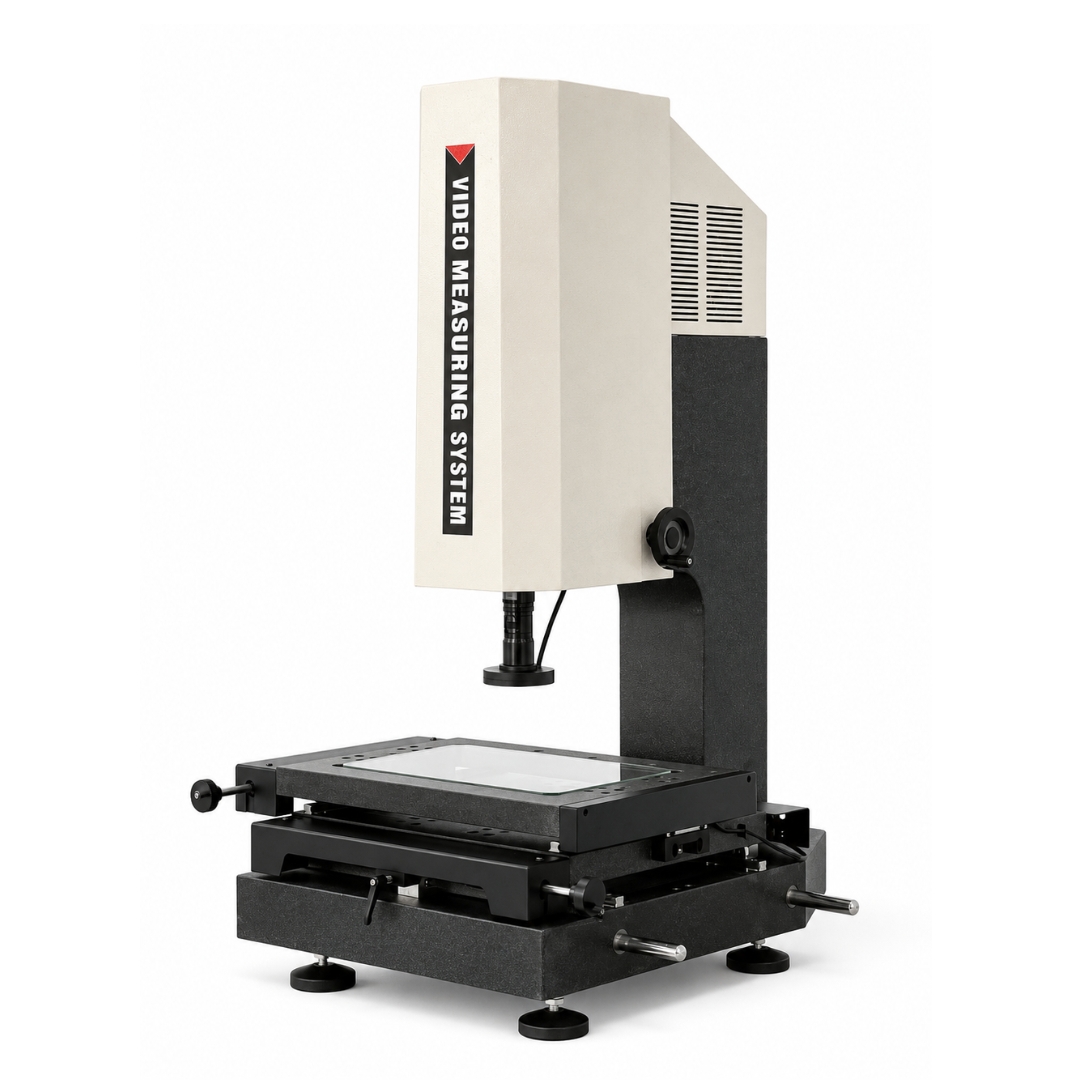

K-M3-VMS-3020 - Manual Video Measuring System
The KOSEIDO K-M3-VMS-3020 is a high-precision Manual Video Measuring System engineered for accurate, non-contact dimensional inspection of medium to large precision components. Featuring a robust granite structure, high-resolution optics, programmable LED illumination, and intelligent measuring software, the K-M3-VMS-3020 delivers exceptional accuracy, repeatability, and measurement efficiency.
Specifications
- 300 × 200 mm X/Y measuring range for versatile inspection applications
- Precision granite base and column for superior rigidity and long-term stability
- High-precision linear guide with 200 mm effective Z-axis travel
- 0.5 μm linear scale resolution for highly accurate positioning
- Measurement accuracy: X/Y: ±(3.0 + L/200) μm, Z-axis: ±(5.0 + L/200) μm
- Excellent repeatability: 2 μm
- 1.3 MP high-resolution digital camera for clear and detailed image capture
