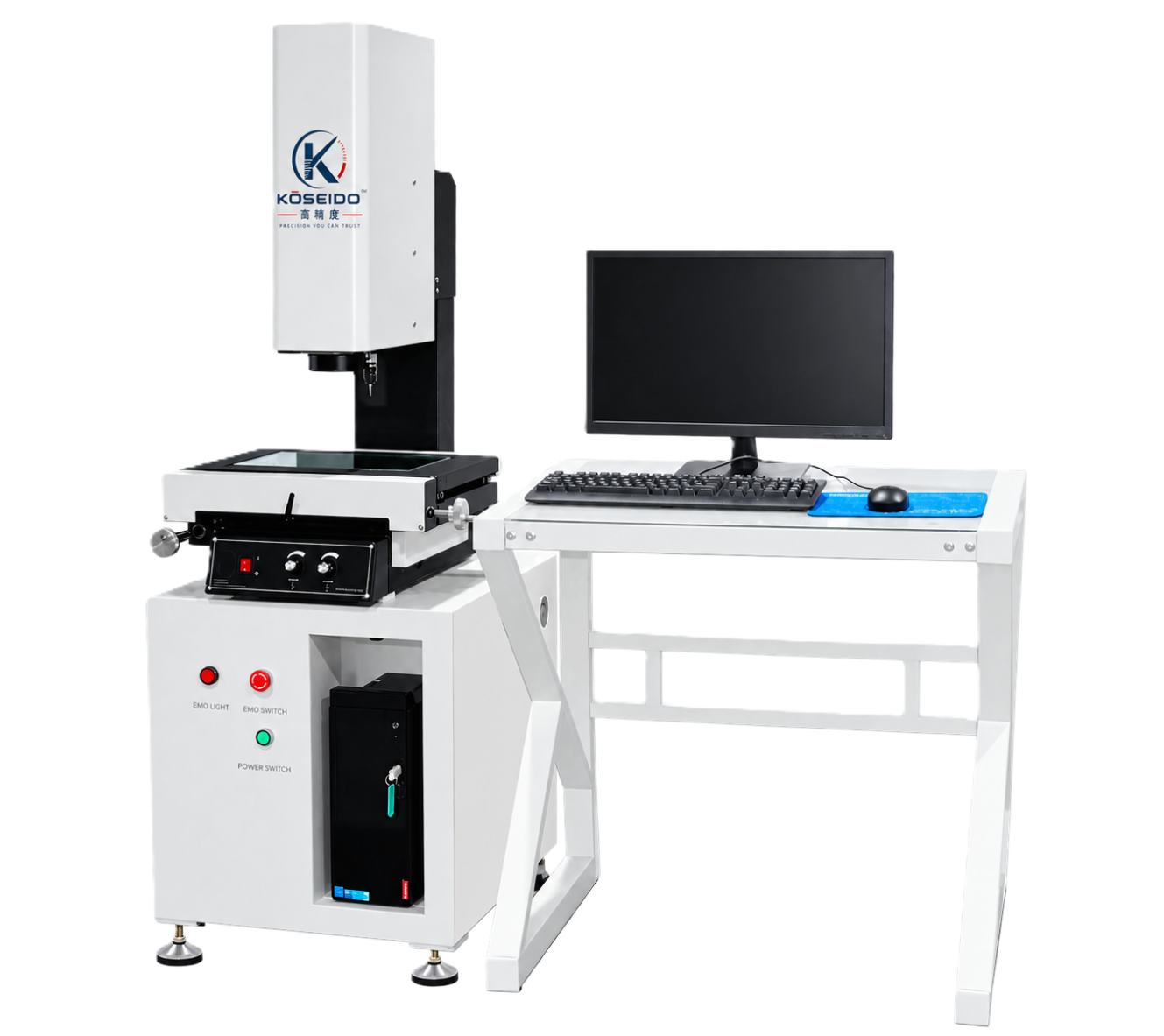

Koseido Semi-Automatic KJ 3020
The Semi-auto Video Measuring System KJ-3020 combines a stable granite structure with motorised Z-axis movement and zoom for efficient measurement. It features a 300 × 200 × 200 mm travel range, 0.5 µm resolution and KOSEIDO software with Excel data connection.
Specifications
- Granite base, column and table offer stable, durable support
- Two-layer table reduces mechanical error; balanced Z-axis ensures smooth movement
- X–Y and single-axis accuracy: 3 + L/200
- Software supports Excel data, tolerance alerts, sub-pixel, curve and virtual measurements
- Operate at 20–25°C on a stable, low-vibration floor
